EKDB4 Distribution Box | IP65 Metal Enclosure

The Distribution Box is used for Terminal power distributing system

The Distribution Box are completed with Din-rail 35mm and Neutral Terminal (Selectable)

Type of open door from right to left

Without Neutral Terminal Model

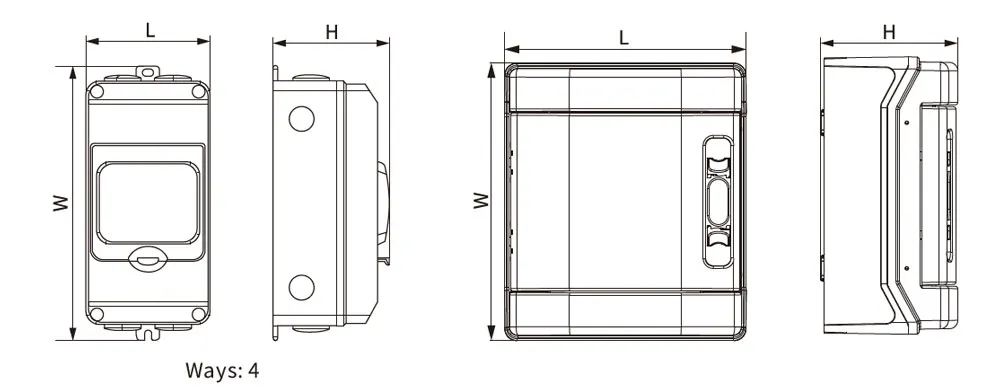

Model No.		Ways	Dimension(mm)
PC	Code		L	W	H
EKDB4P4R	604241	4	100	221	94
EKDB4P6R	604242	6	201	230	114
EKDB4P8R	604243	8	237	230	114
EKDB4P12R	604245	12	308	230	114
EKDB4P18R	604246	18	417	230	114
EKDB4P24R	604247	24(2×12)	309	391	114



With Neutral Terminal Model

Model No.		Ways	Dimension(mm)
PC	Code		L	W	H
EKDB4P4RT	604211	4	100	221	94
EKDB4P6RT	604212	6	201	230	114
EKDB4P8RT	604213	8	237	230	114
EKDB4P12RT	604215	12	308	230	114
EKDB4P18RT	604216	18	417	230	114
EKDB4P24RT	604217	24(2×12)	309	391	114

Electrical Rating	100A/single phase, 63A/three phase, 240/415V AC 50/60Hz
Protection Degree	IP65
Material	Shell: ABS Door: Transparent PC
Installation Method	Surface-Mounted
