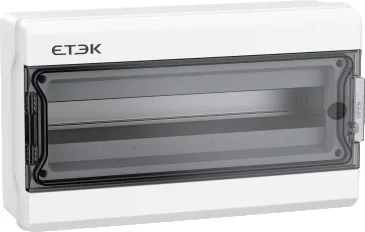

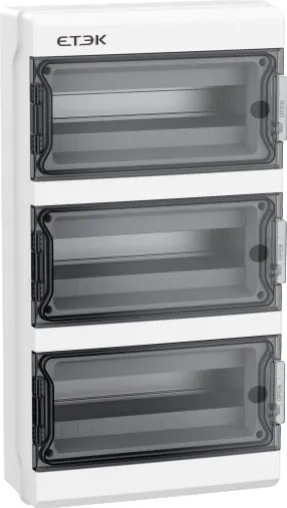

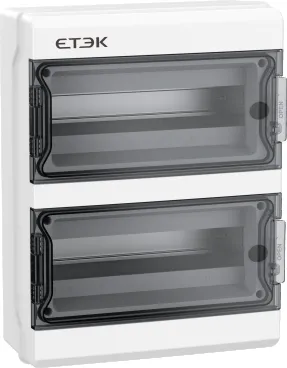

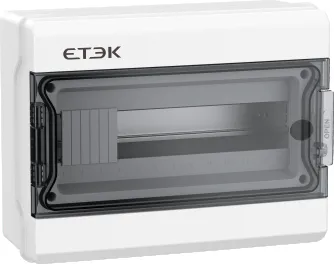

Product Profile

EKDB10 series waterproof distribution box, made of durablePC engineering plastics, offers excellent mechanical strengthand weather resistance. Designed to meet international lECstandards, it ensures reliable protection for electricalequipment in industrial, commercial, photovoltaic, andother indoor or outdoor applications.Standard: lEC60529,1EC62262:2021,IEC60695-2-10:2013.

Technical Data


Model	Without terminal	EKDB10-4	EKDB10-6	EKDB 10-9	EKDB 10-13
Model	With terminal	EKDB10-4T	EKDB10-6T	EKDB10-9T	EKDB10-13T
Ways		4	6	9	13
Layers		Single
Neutral bar configuration		4 holes	6 holes	6 holes	8 holes
Ground bar configuration		4 holes	6 holes	6 holes	8 holes


Model	Without terminal	EKDB10-18	EKDB10-26	EKDB10-39
Model	With terminal	EKDB10-18T	EKDB10-26T	EKDB10-39T
Ways		18	26	39
Layers		Single	Double	Triple
Neutral bar configuration		10 holes	2×8 holes	2×10 holes
Ground bar configuration		10 holes	2×8 holes	2×10 holes

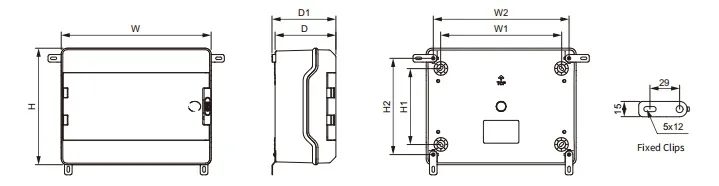

Dimensions

Model	W	H	D	W1	H1	D1	W2	H2
EKDB10-4	128	200	103.5	74	150	–	–	–
EKDB10-6	164	200	103.5	108	150	–	–	–
EKDB10-9	218	200	103.5	162	150	–	–	–
EKDB10-13	296	230	121.5	238	150	126.2	268	190
EKDB10-18	380	230	121.5	328	150	126.2	358	190
EKDB10-26	296.5	390.5	121.5	238	310	136.2	268.5	350.5
EKDB10-39	296.5	550.6	121.5	238	470	136.2	268.5	510.6
